Zodiac Duo-X ™ DX4000

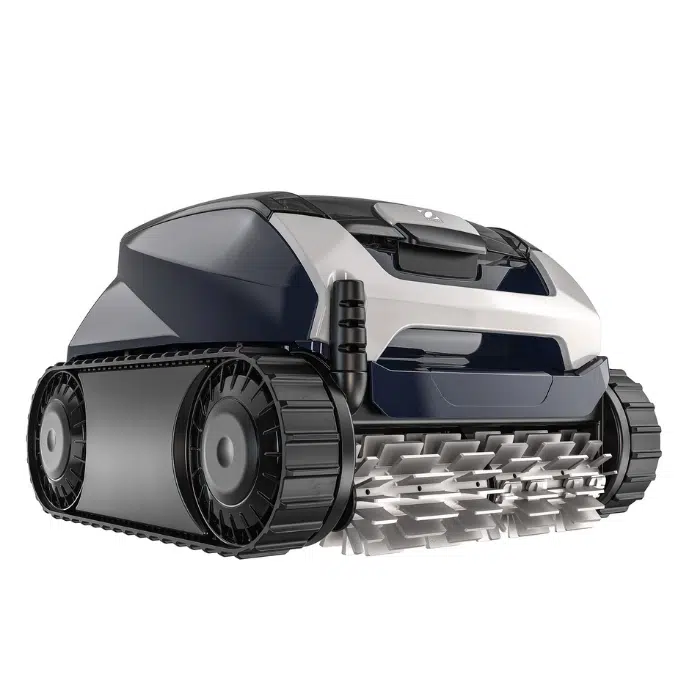

Zodiac Duo-X Robotic Cleaner

Zodiac Duo-X ™ DX4000 Robot Cleaner

  • Duo-X™ offers integrated agility with a compact body intelligent cleaner
  • Dual-stage filtration with 150µ/60µ filter canisters
  • Patented Helix shaped brush picks up all types of debris

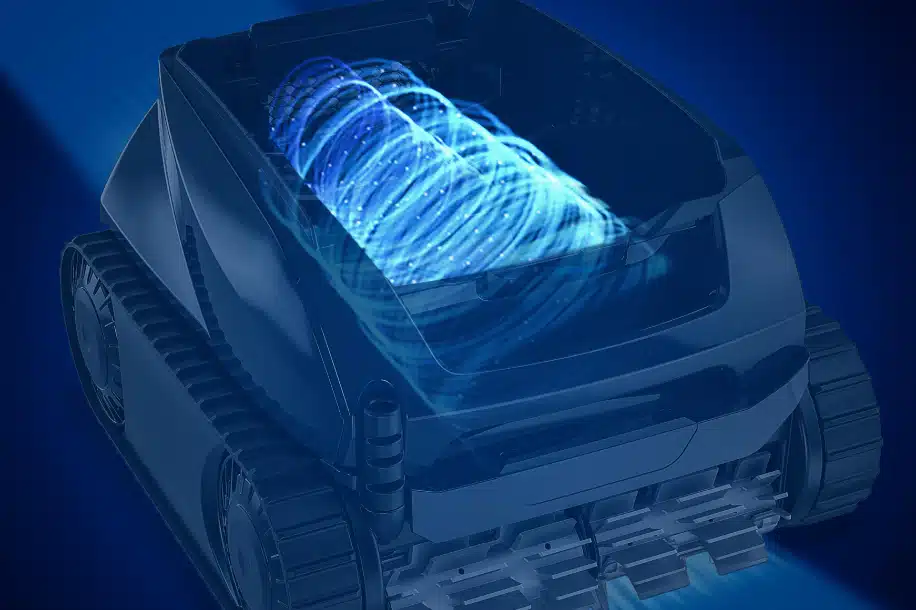

  • Patented Cyclonic Suction technology
  • Transparent canister window with LED illumination
  • Patented Lift System™ makes for easy pool removal
  • Climate Care Certified by SPASA Australia


With new patented Helix shaped brush and compact body, the new Zodiac Duo-X™ offers integrated agility. Featuring dual stage filtration (150μ/60μ) that is capable of picking up small and large debris, the Duo-X™ Robotic Cleaner is designed to run in all types of pools. With the patented Lift System™ and unique design, the Duo-X™ Cleaner is capable of expelling water very quickly making it very easy to operate and remove from the water. Zodiac Duo-X™ has superior wall detection without the need for tilting making it very efficient in covering the pool. DX4050 iQ can be controlled anywhere, anytime through the intuitive interface of the iAquaLink™ App and also enjoy the benefit of automatic over the air remote updates.

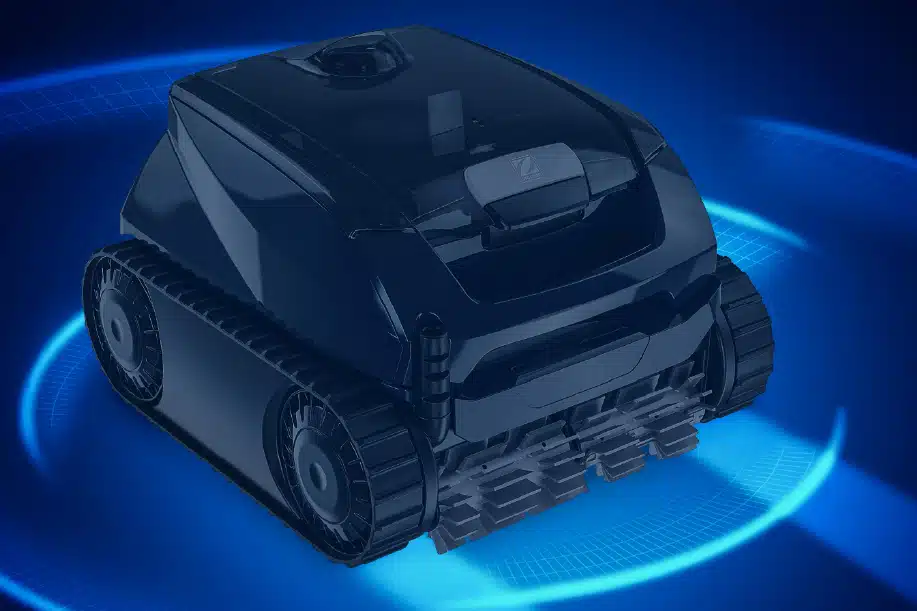

With its embedded smart sensors and its unique design, Duo-X™ DX4000 offers excellent coverage of the pool and limitless agility. It is, therefore, ideal for all pool shapes and linings.


Capture large and small debris with great efficiency. The dual filters ensure all debris is picked up no matter how large or how small, keeping your pool clean. The 150μ filter can also be used on its own.


The Duo-X™ robotic cleaner positions itself on the chosen wall and climbs right up to the water line. Once the robot is removed from the water, it expels water very quickly making is lightweight and effortless. This means that you can remove the robot from the water with 15% less effort.

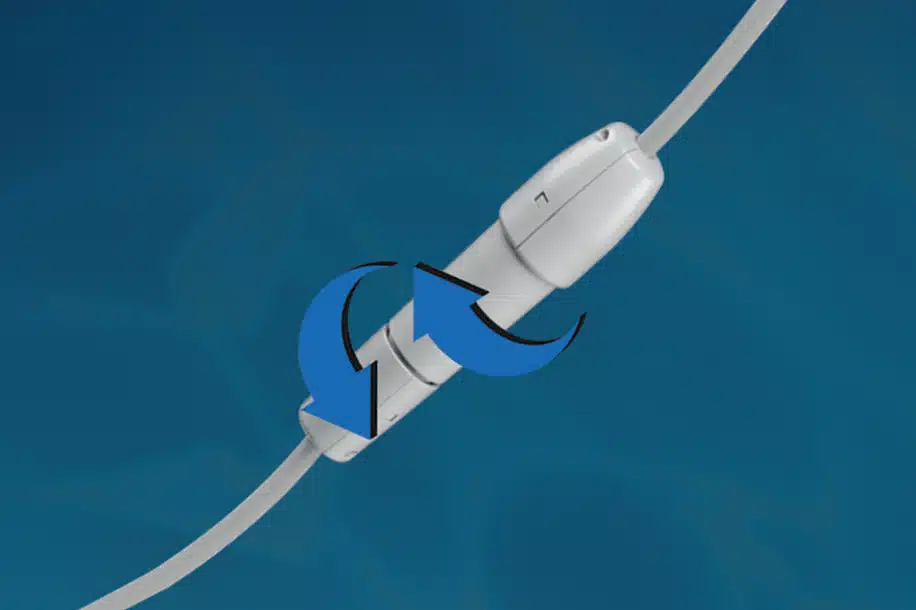

Reduce the chances of cable tangling. Automatic swivel system prevents cable tangling during cleaner operation in the pool. The cleaner efficiency is optimized and the cable storage is easier. All Duo-X™ robotic pool cleaners are equipped with a swivel.

Model No. Duo-X™ DX4000
Pool surfaces Concrete, pebblecrete, quartzon, fibreglass, vinyl and tiles.
Cleaner weight 9.5kg
Pool shapes Rectangular, oval, free shape, flat, gentle slope, composite slope, diamond shape
Pool sizes Up to 10m x 5m (15m cable)
Cleaning areas Floors, walls and waterline
Filter capacity 4L
Number of motors 3
Control box supply 200-240 VAC / 50Hz / 60Hz
Power supply / operating power 30V DC / 150W
Cleaner dimensions 43 cm x 48 cm x 27 cm (L x W x H)
Filtration level Dual stage filtration with 150μ/60μ filter canister
Packaging gross weight 19kg
