Zodiac Duo-X ™ DX4050 iQ Robot Cleaner

Zodiac Duo-X Robotic Cleaner

Zodiac Duo-X ™ DX4050 iQ Robot Cleaner

  • Duo-X™ offers integrated agility with a compact body intelligent cleaner
  • Dual stage filtration with 150µ/60µ filter canisters
  • Patented Helix shaped brush picks up all type of debris
  • Patented Cyclonic Suction technology
  • Control and monitor cleaning progress using iAquaLink™ app
  • Transparent canister window with LED illumination
  • Patented Lift System™ makes for easy pool removal
  • Climate Care Certified by SPASA Australia


With new patented Helix shaped brush and compact body, the new Duo-X™ offers integrated agility. Featuring dual stage filtration (150μ/60μ) that is capable of picking up small and large debris, the Duo-X™ is designed to run in all types of pools. With the patented Lift System™ and unique design, the Duo-X™ is capable of expelling water very quickly making it very easy to operate and remove from the water. Duo-X™ has superior wall detection without the need for tilting making it very efficient in covering the pool. DX4050 iQ can be controlled anywhere, anytime through the intuitive interface of the iAquaLink™ App and also enjoy the benefit of automatic over the air remote updates.


With its embedded smart sensors and its unique design, Duo-X™ DX4000 offers excellent coverage of the pool and limitless agility. It is, therefore, ideal for all pool shapes and linings.


Capture large and small debris with great efficiency. The dual filters ensure all debris is picked up no matter how large or how small, keeping your pool clean. The 150μ filter can also be used on its own.

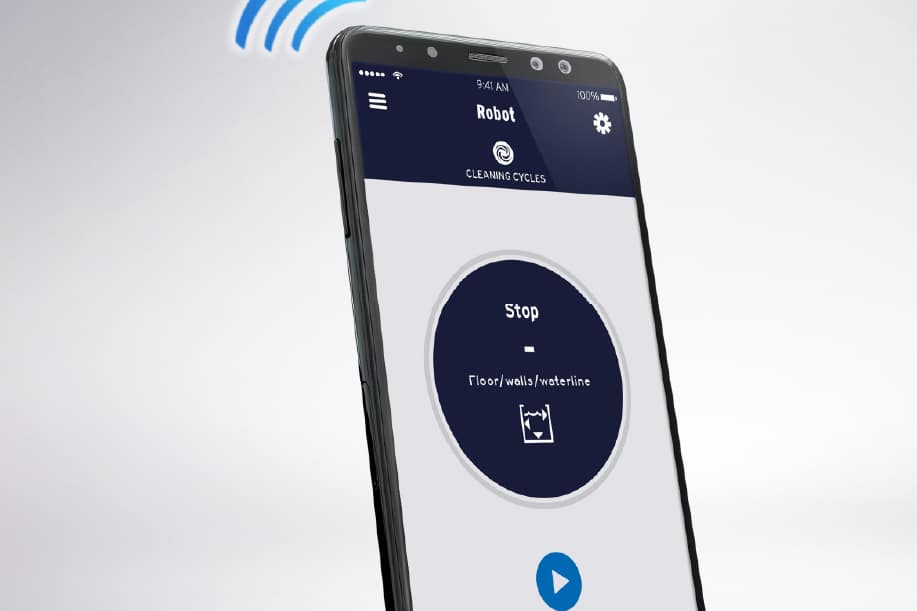

Smartphone connectivity has now won over every sector, including swimming pools. Thanks to the intuitive iAquaLink™ App, you can remotely operate the DX4050™ iQ robotic cleaner and review the progress of the cleaning cycle. Also it is upgradeable thanks to over the air updates.


Duo-X™ features patented cyclonic suction that is powerful and long-lasting. Debris is kept in suspension to avoid filter clogging and to maintain the same level of cleaning performance throughout the cycle.


The Duo-X™ robotic cleaner positions itself on the chosen wall and climbs right up to the water line. Once the robot is removed from the water, it expels water very quickly making is lightweight and effortless. This means that you can remove the robot from the water with 15% less effort.


Reduce the chances of cable tangling. Automatic swivel system prevents cable tangling during cleaner operation in the pool. The cleaner efficiency is optimized and the cable storage is easier. All Duo-X™ robotic pool cleaners are equipped with a swivel.

Model No. Duo-X™ DX4050 iQ
Pool surfaces Concrete, pebblecrete, quartzon, fibreglass, vinyl and tiles.
Filtration level Dual stage filtration with 150μ/60μ filter canister
Cleaner dimensions 43 cm x 48 cm x 27 cm (L x W x H)
Power supply / operating power 30V DC / 150W
Control box supply 200-240 VAC / 50Hz / 60Hz
Number of motors 3
Filter capacity 4L
Cleaning areas Floors, walls and waterline
Pool sizes Up to 12m x 6m (18m cable)
Pool shapes Rectangular, oval, free shape, flat, gentle slope, composite slope, diamond shape
Cleaner weight 9.5kg
Packaging gross weight 19kg
